Inductors play a fundamental role in electronics, serving a wide range of circuits and applications. They are passive components that store energy in a magnetic field when electric current flows through them. Inductors are essential for filtering, oscillation, power conversion, and much more.
What is an Inductor?
An inductor is an electronic component consisting of a conductive wire wound into a coil. This coil is often wound around a core made of magnetic material, which amplifies the inductance of the inductor. Inductance is the property of inductors that relates to the amount of energy that can be stored in a magnetic field.
Basic Working Principle of an Inductor
When an electric current flows through an inductor, a magnetic field is generated around the coil. This magnetic field stores energy. When the current is interrupted, the stored energy is released back as current. This energy storage and release capability is critical for the operation of inductors in various applications.
Key Characteristics of Inductors
- Inductance: The ability to store energy in the magnetic field, measured in henries (H).
- Coil Resistance: The resistance of the conductive wire used in the inductor.
- Rated Current: The maximum current the inductor can handle without damage.
- Saturation Current: The maximum current at which the inductor’s core becomes saturated, reducing its effectiveness.
Types of Inductors
- Air-Core Inductors
- Constructed without a magnetic core; the coil is wound in air.
- Features low losses and high stability at higher frequencies, suitable for radio frequency (RF) and high-frequency applications.
- Constructed without a magnetic core; the coil is wound in air.
- Iron-Core Inductors
- Use a ferromagnetic core like iron or ferrite.
- Provide high inductance and are commonly used in power supplies, energy converters, and line filters.
- Use a ferromagnetic core like iron or ferrite.
- Ferrite-Core Inductors
- Utilize a ceramic core composed of ferrite material.
- Ideal for high-frequency applications, including RF filters and power converters.
- Utilize a ceramic core composed of ferrite material.
- Toroidal Inductors
- Feature a doughnut-shaped core made of iron or ferrite.
- Offer high inductance and low losses, used in power supplies, audio circuits, and communication systems.
- Feature a doughnut-shaped core made of iron or ferrite.
- Chip Inductors
- Compact inductors mounted on ceramic substrates.
- Widely used in RF applications, portable devices, and integrated circuits.
- Compact inductors mounted on ceramic substrates.
- Coupled Inductors
- Consist of two or more inductors sharing the same magnetic core.
- Used for signal coupling, impedance transformation, and oscillatory circuits.
- Consist of two or more inductors sharing the same magnetic core.

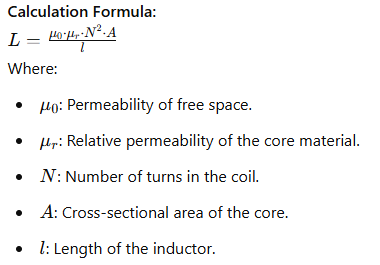

What is Inductance?
Inductance measures an inductor’s opposition to changes in current. Represented by the letter L, it is measured in henries (H). Factors influencing inductance include the number of turns in the coil, core size, and magnetic flux.

Applications of Inductors
- Filters: Control frequency response in circuits, such as low-pass, high-pass, and band-pass filters.
- Oscillators: Help establish oscillation frequencies in resonant circuits.
- Power Converters: Used in DC-DC converters for energy storage and current smoothing.
- Resonant Circuits: Play a key role in radios, antennas, and communication circuits.
- Energy Storage: Temporarily store energy in magnetic fields for later use in circuits.
Standard Inductance Values and Tolerance
- Standardized Values: Like resistors, inductors come with standardized inductance values to simplify circuit design.
- Tolerance: Expressed as a percentage, tolerance indicates allowable variation from the nominal inductance value.
Loss Factors in Inductors
- DC Resistance (DCR)
- Electrical resistance of the wire, causing energy losses as heat.
- Electrical resistance of the wire, causing energy losses as heat.
- Core Losses
- Caused by alternating magnetic fields within the core, leading to energy dissipation.
- Caused by alternating magnetic fields within the core, leading to energy dissipation.
- Eddy Currents
- Unwanted currents induced in the core or wire, further contributing to energy losses.
- Unwanted currents induced in the core or wire, further contributing to energy losses.
Considerations for Inductor Usage
- Overcurrent Protection: Ensure the inductor can handle the required current to avoid damage.
- Core Saturation: Select an inductor with adequate saturation current to maintain performance.
- Temperature Effects: Factor in thermal behavior during selection.
- External Magnetic Interference: Shield inductors from external magnetic fields to avoid performance degradation.
Testing Inductors
- Multimeter Testing: Measure inductance or resistance using an appropriate multimeter setting.
- Oscilloscope Testing: Observe waveform behavior to analyze frequency response.
- DC Resistance Testing: Identify potential faults by measuring the resistance of the winding.
FAQ
- What distinguishes an inductor from a transformer?
- Inductors store energy in a magnetic field, while transformers transfer energy between windings via magnetic coupling.
- Inductors store energy in a magnetic field, while transformers transfer energy between windings via magnetic coupling.
- Can I adjust an inductor’s inductance?
- Inductance is a fixed property based on design. For different inductance values, a new inductor must be selected.
- Inductance is a fixed property based on design. For different inductance values, a new inductor must be selected.
- Are inductors polarity-sensitive?
- No, inductors are non-polarized components and can be connected in either direction.
- No, inductors are non-polarized components and can be connected in either direction.
- What are the limits of an inductor’s operating frequency?
- Inductors have a self-resonant frequency beyond which their performance degrades due to parasitic capacitances.
- Inductors have a self-resonant frequency beyond which their performance degrades due to parasitic capacitances.
- Where are inductors commonly used?
- Applications include power supplies, filters, RF circuits, communication systems, and energy storage solutions.
- Applications include power supplies, filters, RF circuits, communication systems, and energy storage solutions.
