Lightning strikes represent a significant threat to buildings, power transmission lines, and electronic equipment. Implementing a robust Lightning Protection System (LPS) is essential to minimize damage caused by these events. In this article, we explore the components, methods, and best practices to ensure the safety of your installations.
What Are Lightning Strikes?
Lightning strikes can be categorized as either direct or indirect:
- Direct Strikes: These occur when lightning directly impacts a structure, such as a building or power transmission line. A robust LPS is required to intercept and safely conduct the lightning’s energy to the ground.

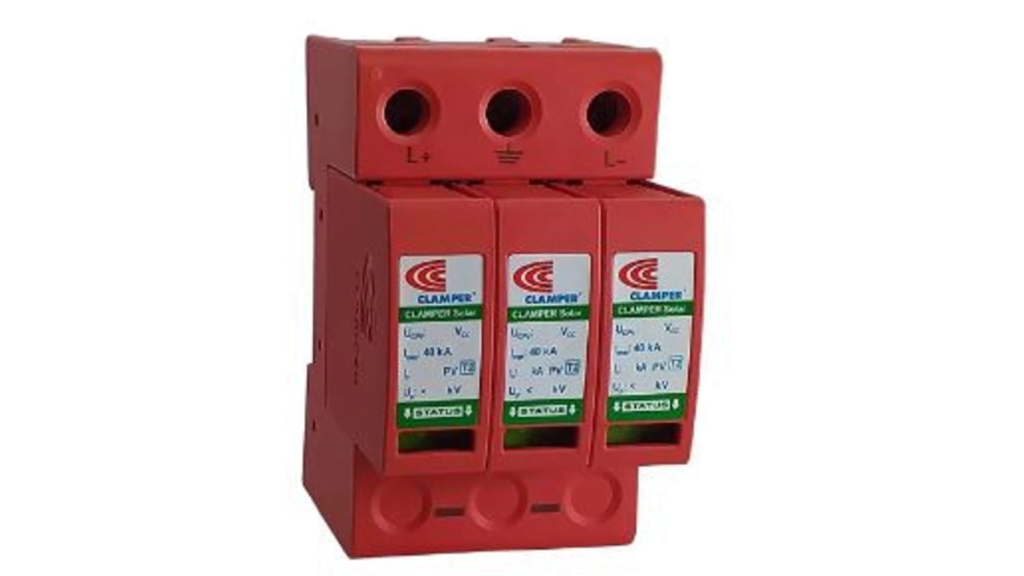

- Indirect Strikes: These are surges induced in electrical systems due to the proximity of a direct strike. Though less visible, these surges can significantly damage sensitive electronic equipment.
Essential Components of an LPS
An effective Lightning Protection System consists of several key elements, each playing a critical role in ensuring the safety of the structure:
- Air Terminals: These are the first line of defense, including lightning rods, masts, or conductor cables that intercept lightning strikes.
- Down Conductors: These are cables that connect the air terminals to the grounding system, guiding the lightning’s energy safely to the earth.
- Grounding System: This disperses the lightning’s energy into the earth, minimizing the risk of damage to the structure and its equipment.
- Bonding and Equipotentialization: This integrates the metallic components of a building with the grounding system to prevent hazardous voltage differentials and improve overall safety.
Methods of Protection: Choosing the Best for Your Structure
In the United States, lightning protection standards such as NFPA 780 and UL 96A, and in the UK, standards like BS EN 62305, provide guidelines for LPS design. Common methods include:
Rolling Sphere Method (RSM)
The RSM determines protected areas using a conceptual “rolling sphere” to simulate the trajectory of a lightning strike.
- How It Works:
- A sphere with a defined radius (based on lightning intensity) is rolled over the structure. Any point touched by the sphere is at risk and requires protection.
- Protected areas are those shielded by air terminals or other protective elements.
- A sphere with a defined radius (based on lightning intensity) is rolled over the structure. Any point touched by the sphere is at risk and requires protection.
- Applications: This method is ideal for large or complex structures, such as tall buildings and industrial facilities.
Franklin Rod Method
Also known as the “traditional lightning rod method,” this approach simplifies protection for smaller structures.
- How It Works:
- A cone of protection is defined by an angle extending from the lightning rod to the ground, forming a protective zone around the structure.
- Suitable for residences, small factories, or storage facilities.
- A cone of protection is defined by an angle extending from the lightning rod to the ground, forming a protective zone around the structure.
- Benefits:
- Easy to implement.
- Cost-effective for smaller buildings.
- Easy to implement.
Faraday Cage Method
This approach is based on Faraday’s principle, using a grid of conductors to protect large areas such as warehouses, factories, or skyscrapers.
- How It Works:
- A mesh of conductors is installed over and around the structure, intercepting strikes before they reach the interior.
- Metallic elements like window frames and railings are bonded to the grid, ensuring any lightning current is safely conducted to the ground.
- A mesh of conductors is installed over and around the structure, intercepting strikes before they reach the interior.
- Benefits:
- Comprehensive protection for large or high-risk structures.
- Effective for buildings with extensive metallic exteriors.
- Comprehensive protection for large or high-risk structures.
Importance of Grounding and Electrical Continuity
Grounding is a critical component of any LPS. According to NFPA 780 and BS EN 62305, the grounding resistance should ideally be below 10 ohms. Proper grounding ensures efficient dissipation of lightning energy, while regular testing of electrical continuity ensures all conductive elements function effectively in a lightning event.
FAQ: Lightning Protection Systems
- What is an LPS?
An LPS is a set of devices and methods designed to protect buildings and facilities from lightning strikes by safely conducting the energy to the ground. - What’s the difference between direct and indirect strikes?
Direct strikes impact a structure directly, while indirect strikes involve surges induced in electrical systems by nearby lightning. - What role does grounding play in an LPS?
Grounding disperses intercepted lightning energy into the earth, reducing risks to the structure and equipment. - How does the Rolling Sphere Method work?
It uses a virtual sphere to identify unprotected areas on a structure, ensuring adequate coverage by air terminals. - When should the Faraday Cage Method be used?
This method is ideal for large industrial facilities or buildings with extensive exposed areas.
Conclusion
Implementing a compliant and effective Lightning Protection System is essential to safeguard structures against lightning strikes. Adhering to standards like NFPA 780 or BS EN 62305 ensures both safety and compliance, minimizing risks and preserving the integrity of your assets.
