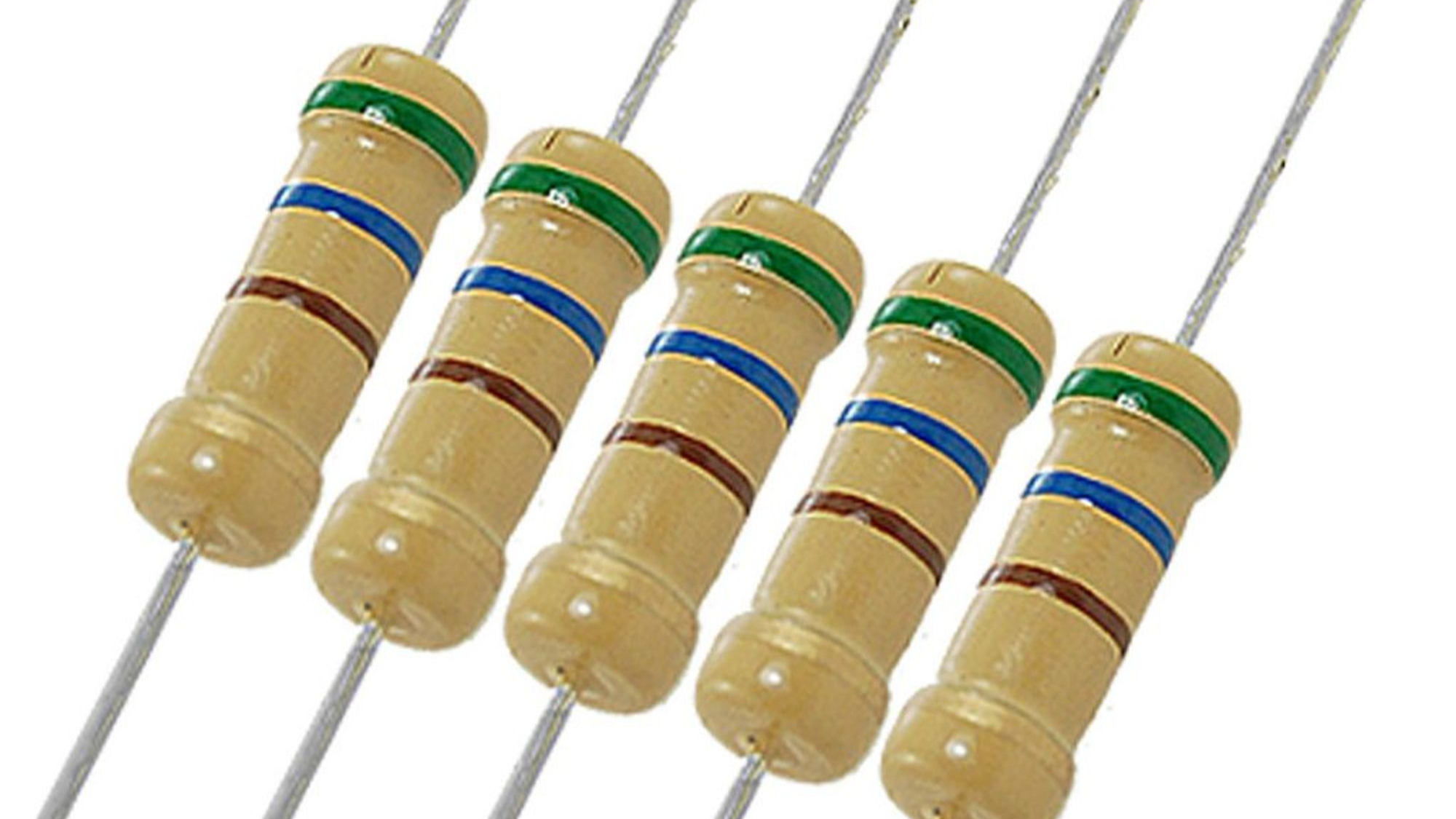

A resistor is a passive electronic component used to limit the flow of electric current in a circuit. Its electrical resistance is measured in ohms (Ω). By offering resistance to the flow of electrons, resistors help regulate electric current and protect other sensitive components from damage caused by excess current.
Characteristics and Properties of Resistors
Resistors have several characteristics and properties that are essential for their use in electronic circuits. Some of the key aspects to consider are:
- Nominal Resistance: This is the resistor’s declared value, expressed in ohms. It determines the amount of opposition to the flow of electric current that the resistor provides.
- Tolerance: Tolerance is a specification that indicates the allowed variation from the nominal resistance value. It is expressed as a percentage and defines the precision of the resistor.
- Nominal Power: The nominal power rating determines the maximum amount of energy the resistor can safely dissipate. Selecting a resistor with an appropriate power rating is crucial to avoid overheating.
- Temperature Rating: The temperature rating specifies the range of temperatures in which the resistor can operate without compromising its performance. It is indicated by an alphanumeric code.
Basic Operating Principles
Resistors are based on Ohm’s Law, which establishes a direct relationship between voltage, current, and resistance in a circuit. According to Ohm’s Law, the current passing through a resistor is directly proportional to the applied voltage and inversely proportional to the resistance. This relationship is expressed by the formula:

where:
- V is the voltage (in volts),
- I is the current (in amperes),
- R is the resistance (in ohms).
Types of Resistors
There are different types of resistors available for various applications. We will explore the most common types: wire-wound resistors, film resistors, and surface mount resistors (SMD).
- Wire-wound Resistors: These consist of a high-resistance conductor wire typically wound around an insulating core. They are known for their high precision and thermal stability, making them ideal for applications requiring precise and stable resistances.
- Film Resistors: Film resistors are made from a ceramic or carbon substrate coated with a thin layer of resistive material. This layer is applied using deposition techniques, such as sputtering or screen printing. Film resistors offer a wide range of resistance values and are widely used in various electronic circuits.
- SMD (Surface Mount Device) Resistors: SMD resistors are designed for surface mounting and are commonly used in high-density component applications, such as printed circuit boards (PCBs). They are compact and mounted directly on the surface of the PCB, offering space efficiency in modern electronics.
Resistor Characteristics
- Nominal Resistance: The nominal resistance is the resistor’s declared value, expressed in ohms (Ω). It represents the amount of opposition to the flow of electric current.
- Tolerance: Tolerance indicates the allowed variation in the resistance value, expressed as a percentage.
- Nominal Power: The nominal power rating specifies the maximum energy the resistor can dissipate safely, measured in watts (W).
- Temperature Rating: The temperature rating specifies the range of temperatures in which the resistor can operate without affecting its performance.
Laws and Formulas for Resistors
- Ohm’s Law: This fundamental law states that the current passing through a resistor is directly proportional to the voltage applied and inversely proportional to the resistance. It is expressed as:
- Resistance Formulas:
- Resistance = Voltage / Current
- Total Resistance in a Series Circuit =
- Resistance = Voltage / Current

- Total Resistance in a Parallel Circuit =

- Resistance in Series Circuits: In a series circuit, resistors are connected one after the other, forming a single path for current to flow. The total resistance is the sum of the individual resistances.
Applications of Resistors
Resistors have a wide range of applications in electronics. Here are some key applications:
- Voltage Divider: Resistors can be used to create a voltage divider, a circuit that divides the input voltage into specific proportions.
- Current Limitation: Resistors are used to limit the current in a circuit, such as in series with an LED to prevent excessive current flow.
- Signal Attenuation: Resistors are used in circuits that attenuate signals, reducing the amplitude without significantly affecting the waveform.
- Pull-up and Pull-down in Digital Circuits: In digital circuits, resistors ensure that digital signals are in a defined state when not being actively driven.
Resistor Identification and Specifications

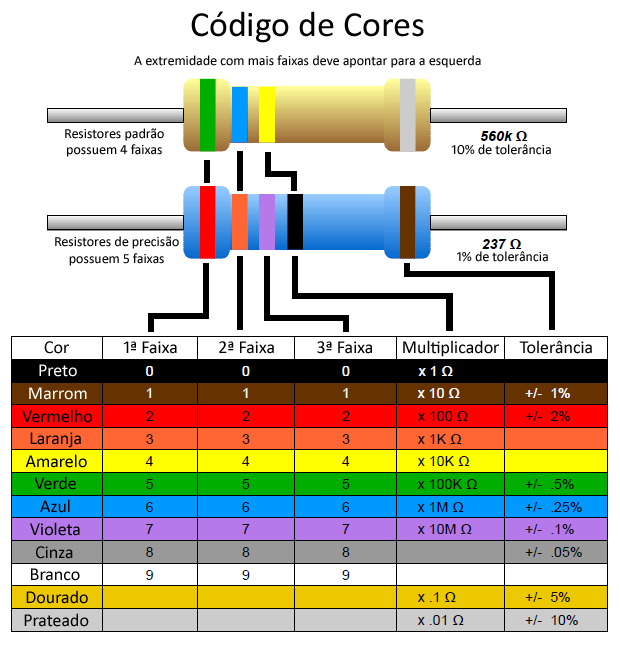

- Color Coding: Resistors are often identified using color bands on their body. Each color represents a specific digit or multiplier. The color code allows for the determination of the nominal value and tolerance.

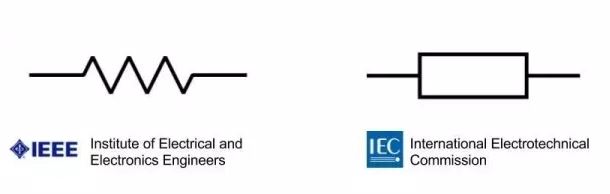

- Symbols and Identification in Diagrams: Resistors are represented by specific symbols in electronic diagrams, which makes it easier to interpret and design circuits.

Examples of Circuits with Resistors
- Voltage Divider Example: A voltage divider circuit uses two resistors to create a voltage output proportional to the input voltage.

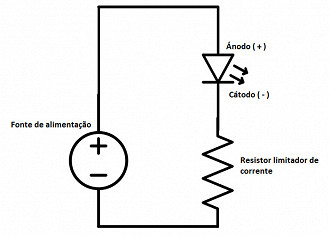

- Current Limiting Example: A circuit that uses a resistor to limit the current flowing through a sensitive component like an LED.

Variable Resistor (Potentiometer)
A potentiometer is an electronic component used to adjust resistance in a circuit, thereby controlling voltage or current. It is commonly used in control devices such as radio volume adjustments, screen brightness control, and motor speed regulators.
Potentiometer Structure
A typical potentiometer consists of three terminals and a resistive element, which is a semicircular resistive track made from a material like carbon or a metallic film, and a sliding contact known as the cursor or wiper.
- Terminals:
- Terminal 1 (A): Connected to one end of the resistive track.
- Terminal 2 (W): Connected to the moving cursor.
- Terminal 3 (B): Connected to the other end of the resistive track.
- Terminal 1 (A): Connected to one end of the resistive track.
- Resistive Element: The part of the potentiometer where the resistance varies, either linearly or logarithmically, depending on the desired response.
- Wiper: A movable contact that slides along the resistive track when the potentiometer’s shaft is rotated, adjusting the resistance between the terminals.
Potentiometer Operation
When the potentiometer is connected to a circuit, it can function either as a voltage divider or as a variable resistor.

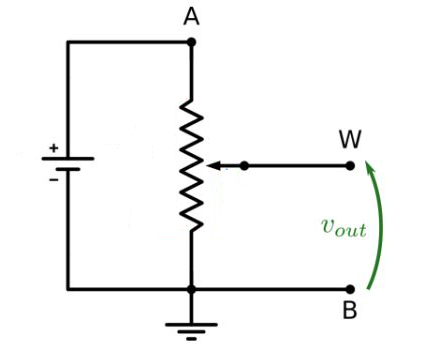

- Voltage Divider: The three terminals are connected to the circuit, with terminals 1 and 3 connected to voltage points, and terminal 2 providing the adjustable output voltage.
- Variable Resistor: Only two terminals (typically 1 or 3, and 2) are used, where the resistance between them varies as the cursor moves.

Common Applications of Potentiometers
- Volume Control: Adjusting audio levels in sound equipment.
- Brightness Control: Regulating the brightness in displays and lighting.
- Speed Control: Regulating the speed of electric motors by adjusting the input voltage.
FAQ
- What is the function of a resistor in an electronic circuit?
- Resistors limit the flow of electric current by providing resistance, which controls the amount of current passing through the circuit.
- Resistors limit the flow of electric current by providing resistance, which controls the amount of current passing through the circuit.
- How to identify the value of a resistor?
- Resistor values are identified using a color code, where each color represents a specific digit or multiplier.
- Resistor values are identified using a color code, where each color represents a specific digit or multiplier.
- What is tolerance in a resistor?
- Tolerance indicates the allowed variation from the nominal resistance value and is expressed as a percentage.
- Tolerance indicates the allowed variation from the nominal resistance value and is expressed as a percentage.
- How to choose the right power rating for a resistor?
- The power rating indicates the maximum energy the resistor can safely dissipate. It’s important to choose a resistor with an appropriate power rating to avoid damage.
- The power rating indicates the maximum energy the resistor can safely dissipate. It’s important to choose a resistor with an appropriate power rating to avoid damage.
- How to calculate total resistance in series and parallel circuits?
- In series circuits, total resistance is the sum of the individual resistances. In parallel circuits, the reciprocal of total resistance is the sum of the reciprocals of the individual resistances.
- In series circuits, total resistance is the sum of the individual resistances. In parallel circuits, the reciprocal of total resistance is the sum of the reciprocals of the individual resistances.
- What is a variable resistor (potentiometer)?
- A variable resistor, or potentiometer, allows the adjustment of resistance in a circuit, typically used for controlling voltage or current in applications like volume control or motor speed adjustment.
- A variable resistor, or potentiometer, allows the adjustment of resistance in a circuit, typically used for controlling voltage or current in applications like volume control or motor speed adjustment.
